Depth of Field


This tutorial will describe how to use the Lens Blur filter in PhotoShop on your renders, using a ZDepth pass.

A ZDepth pass is a black and white image which gives the depth in the z-direction (viewing vector, z component). I will describe in short how to make this pass and then what to do with it.

First of all: you need an actual scene where you want to apply the Depth of Field on. In my case I chose my latest project, which was an artists impression of the center console of the Bugatti Veyron 16/4 (the car).
On the next two screens you can see my camera (you need a camera to do all this! always use camera's to fix certain views on your model) from the top view and the view through the camera.

Select the Camera, and in the Modify panel go to the parameters and then to the environment ranges. Click the checkbox 'Show' and change the Near and Far ranges to what you want as a 'start' and 'end' point of your focal area. Basically you want as much contrast as possible throughout your whole image, and thus try to tweak the Near and Far ranges so that they ...

My settings for this scene were 3000 and 4500 roughly. Remember those values, we will be using them later!

Go to the Material Editor, make a new Standard material, set the self-illumination to 100, click the diffuse slot...

...select Falloff...

...set the Type to Distance Blend...

...and the Near and Far ranges so they match your ranges in your Camera.

Apply this material to all your visible objects in your scene, delete all your lights, set the renderer to Scanline and press shift + q or F9 (quick render).

If everything is correct, you should have something like the following:


Click image for full-size.

Save it to a new file (something like Dash 015 Z Cam04.jpg for instance).

Here's my original render onto which we will apply the DoF trick.


Click image for full-size.

Open up PhotoShop, and load your original render, copy it to a new file (never use the original render when you edit it), and press ctrl + j to duplicate it once more:

Add a new Layer Mask by going to Layer > Layer Mask > Reveal All

In the Layers Panel of PhotoShop (the one below your Navigator Panel usually) you now see the new layer mask.

Click the mask in the Panel so that it gets those little brackets around it and then click the Channels Tab.

Open your ZDepth pass image, copy it (select all, ctrl + c), close it, and paste it into the empty channel (so not into the R, G, B ones!) but in the one we just added.

Go back to the Layer Tab and you can see your mask there...

...and you see it in action too; our image has a reddish hue to it! Oh no!


Click image for full-size.

Not to worry though. Now for the magic: go to Filters > Blur > Lens Blur...

set the Depth Map to Layer Mask, if it isn't already. Make sure Preview is ticked too.

Play with the settings until the result looks how you want it.

The most important settings are:
Blur focal distance: this determines where your focal point it, so where it is sharp
Iris > Radius: the amount of bluriness

All the other ones are not as important, but are great for more tweaking and optimizing.

When you're done, click OK.

What the hell? It doesn't look at all like what we just saw in the preview! CURSES!

It's the Layer Mask that does the damage here; it makes all the white areas in the ZDepth pass more opaque than the black area's. It acts as an opacity map!


Click image for full-size.

So get rid of it, since we already used it for the Lens Blurring.

DELETE! GO AWAY!

Now we're talking; this is like what we saw in the Lens Blur preview window.


Click image for full-size.

It looks pretty good, but there are some problem area's, such as the one I circled here. The blurring isn't very smart and thus overlapping area's don't really smooth out. In this case the CD player was properly modeled and thus was empty inside, the ZDepth was larger there (scroll up to see it in the ZDepth pass).


Click image for full-size.

The solution? Manual blurring, using the Blur Tool (press R in PhotoShop). Set the feather tip to something appropriate and fix what needs to be fixed without messing up the nice effect created by Lens Blur.

Voila!


Click image for full-size.

And the original render (straight from 3D Max, low VRay settings, don't tackle me on the aliasing please. :)), for completeness.


Click image for full-size.

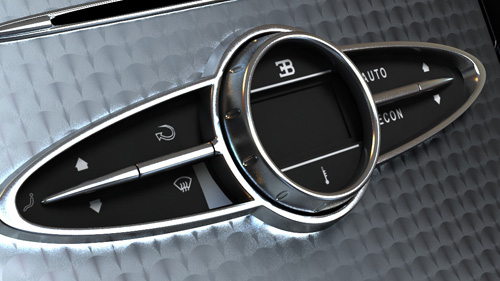

Some other renders of the same scene, with different camera's and varying amounts of DoF:
